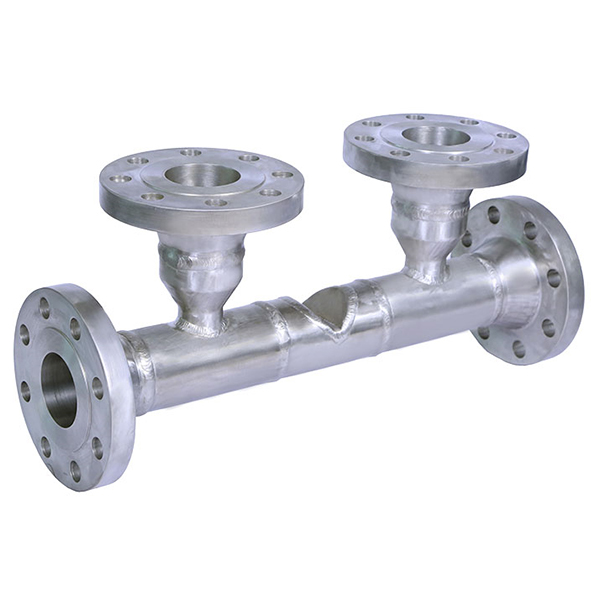

WEDGE METER

In line sizes from 0.5" through 24”, The wedge meter is a differential pressure producing device for use on all fluids especially slurries and liquids with suspended solids.
Our wedge meter is particularly effective on viscous fluids or for bi-directional flows. It is insensitive to pipe Reynolds Numbers which can be as low as 500.
The operating principal of the ‘Petro Deghat part’ wedge flow meter is analogous to that of other differential producing flow meters such as orifice plates or venturi meters.
In the respect that the pressure difference is measured across a flow constriction in this case, a sloping "wedge" is related to the velocity of the flow passing through the narrowest cross section of the flow element.

.
