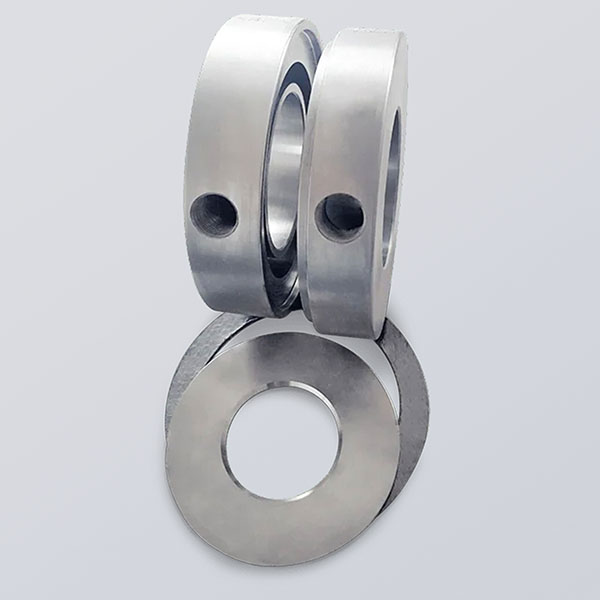

ANNULAR CHAMBER



Annular Chambers are primary flow elements used for flow measurement, particularly under challenging process conditions.
They consist a pair of concentric rings separated by an annular space, with the inner ring having an orifice in the center through and already installed process flanges, which feature pressure tapping machined directly into the equipment.
The assembly generates a differential pressure at the full-scale flow rate & ensures stable measurements under difficult process conditions.
The orifice plate, orifice flanges, and annular chambers are available in various materials and designs, optimized to meet customers' requirements and match the respective final applications perfectly.
In summary, an orifice annular chamber is a flow measurement that achieve stable measurements under challenging process conditions.

.
